产品中心PRODUCT

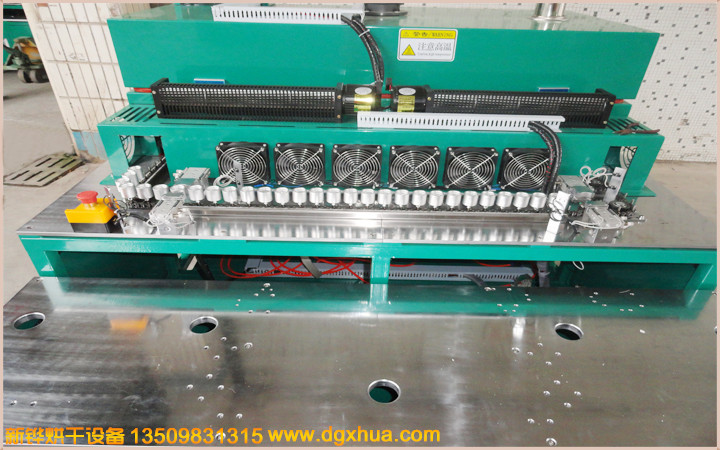

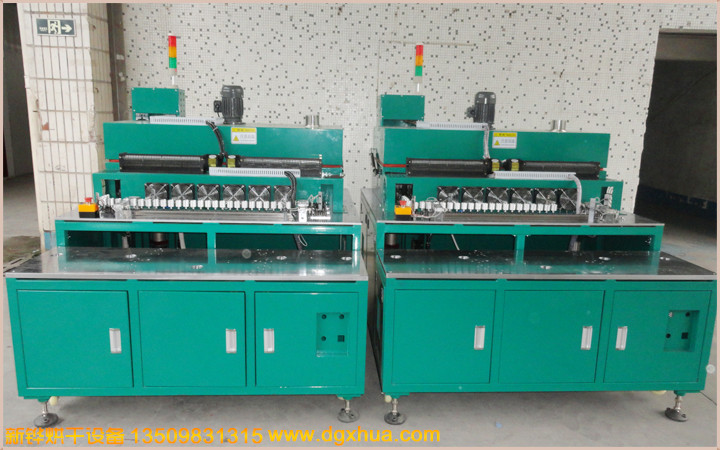

Rotor rubber furnace
Product number:
Rotor rubber furnace
Scope of application:
Micro motor, small motor, stator rotor, motor commutator

Rotor rubber furnace


Model XHSO-250-1IR XHSO-450-1IR

Inner dimension L*W*H(mm) 850*410*150 1000*1650*150

Outer size L*W*H(mm) 1300*970*1520 1850*1350*1650

Feed port height (mm) 0-150 conveying height (mm)

Heating section length (mm) 3*500 3*660

Cooling section length (mm) 600 1000

Conveying method 201 stainless steel pin chain

Delivery fixture 250 450

Temperature range RT-150°C Uniformity: ±2.5% (no-load test)

Heating time 15min 20min

Box material

Inner box: SUS304#T1.5mm mirror stainless steel

Outer box: SS41#T1.5mm steel plate after anti-rust treatment, high-temperature baking powder

Air supply mode Single side horizontal air supply / vertical air supply

Heating method SUS304# electric heater + hot air circulation, IR + hot air circulation

Protection device Leakage switch, phase sequence protection, over temperature protection, motor over current protection, control line fuse

Electricity AC380V 8KVA AC380V 10KVA

Product Features

It adopts intelligent temperature controller, PID automatic calculation, LED display, and SSR solid state relay output control heating, high temperature control precision.

Multi-stage uniform distribution control heating

The far-infrared electric heating tube is used for power saving and dust-free, so that the product achieves the effect of rapid drying.

The multi-channel nitrogen flow meter inlet can be installed with an oxygen content detecting device.


Specification typeSelected itemsProduct VideoDesign according to customer requirements

  Rotor silicone furnace non-standard custom welcome consultation


Product introduction
Unique performanceCustomer optional configuration

The inner tank is fully welded with stainless steel argon arc welding to prevent the machine itself from generating dust; the interior is clean and dust-free;

Double over-temperature protection, safer and more reliable;

The internal hot air circulation, the baked objects are evenly heated;

Fast heating time, stable and accurate temperature;

Domestic first-class heat insulation, heat insulation and insulation technology, excellent sealing effect;

The temperature of the body shell is low, which has little effect on the indoor environment temperature;

A variety of heating and transport wind according to product settings; energy saving, safe and environmentally friendly.

It can be protected by a nitrogen-filled atmosphere to achieve an oxidation-free baking environment.

Control systems, trays and carts can be selected according to customer needs.

Color selection legend


Customers can specify color according to the color card.

※According to different baking trays/trailers, the materials are painted, electroplated zinc, stainless steel, etc. The size and specifications can be customized. Welcome to inquire.

Temperature control optional equipment

Thermostat (single segment / 8 segments - 256 segments programmable)
Taiwan Yudian temperature control tableJapan Omron intelligent temperature control table
Japan imported 256-segment programmable Omron temperature controllerJapan OMRON Thermostat
Logger
Imported multi-channel color screen paperless recorderImported multi-channel paper recorder
Import PARTLOW chart temperature recorderImported YOKOGAWA 48 channel temperature recorder
记录组
Portable Temperature Recorder Set 6 pointsIR computer temperature recorder set 6 to 12
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power output, according to SSR, SCR, SSPR and other power automatic regulator.

触摸屏+PLC
Weilun 7 inchProface
MitsubishiSiemens
Industrial computer Ethernet remote monitoring
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power Output An automatic power regulator such as SSR, SCR, SSPR can be installed.

Wind path cycle legend

Single side air supply typeDouble-sided air supply typeDouble-sided air supply explosion-proofHeat radiation rising type
Four-sided radiation typeThermal radiation typeHot air radiation typeHot air radiation type

Tray, cart matching project

Tray form




Punching plateScreen trayGrid disk
Activity cart




grillOven cart + trayChild cart
