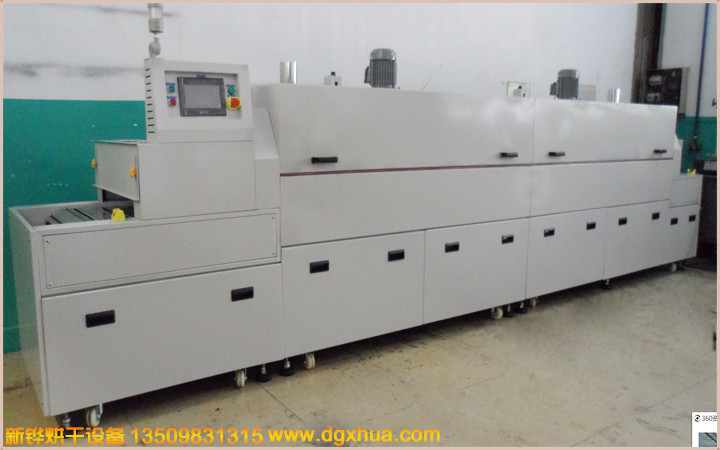

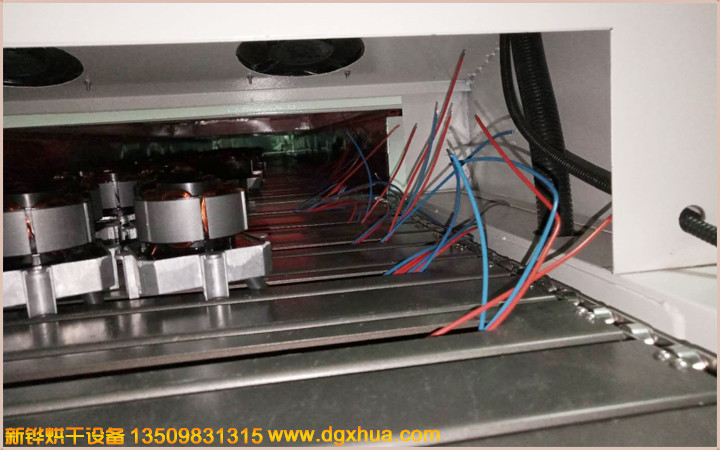

Rotor filling tunnel furnace
Product number:
Rotor filling tunnel furnace
Scope of application:
Motor rotor glue drying

Rotor filling tunnel furnace

The following parameters are configured for reference.

Power source: AC380V 3Φ 50HZ 20KW

Machine size: outer size: W800mm × L5000mm × H1200mm

Feeding section length: 500mm; heating section length: 3500mm (divided into 2 sections of temperature control, each section: 1750mm / 1 supply air motor); cooling section 500mm (divided into 2 groups of 6-inch adjustable angle fan sets); Receiving section: 500mm.

The width of the conveyor chain is 530mm, the height of the conveyor chain is 750+ 50mm, and the height of the inlet/outlet is adjustable by 150MM.

Temperature Control System

Temperature range: room temperature - XAX220 ° C; commonly used 80 ° C; normal temperature rise to 80 ° C takes 12 minutes.

Control mode: Adopt (Mitsubishi) temperature module with (Hua Ting) SCR to control temperature, precise temperature control, small temperature deviation; operation interface adopts (Wellen) 7-inch color screen with (Mitsubishi) PLC setting and operation.

5. Machine action: Overheating stops heating and alarms (sound and light alarm).

6. Structural design

 Inner box material: SUS201#T1.2mm stainless steel plate, surrounded by argon welding and sealing processing (anti-pollution). Outer box material: SS41#T1.5mm steel plate is coated with anti-rust static high-temperature powder, wrinkle white.

Insulation material: high temperature resistant aluminum silicate cotton + air insulation, insulation thickness 100mm,

  The use of high temperature resistant silicone is tight, beautiful and pollution free.

Machine structure: The heating section is designed with manual struts to facilitate maintenance, cleaning and maintenance;

7. Air supply system

The motor is circulated from the top, and the hot air is blown from top to bottom to the product, jet design, circulation

Air supply, good uniformity.

The long-axis oven-specific motor 2 sets (Yongyuan) and the powerful multi-wing type wind wheel are used.

8. Heater:

Taiwan (Taiwan) Zhongbo infrared electric heating tube, saving electricity, and has a service life of 2 years.

Heating power: 8KW / per segment.

9. Conveying system: transmission motor + reducer + sprocket + chain + stainless steel punching chain plate (see the bottom), conveying mode (control box discharge section) from left to right, continuous conveying, speed 0~0.3M/ Min, (commonly used 0-0.1M/MIN), the touch screen sets the conveying frequency and displays the conveying speed.


Specification typeSelected itemsProduct VideoDesign according to customer requirements

  Rotor filling tunnel furnace can be customized according to process requirements


Product introduction
Unique performanceCustomer optional configuration

The inner tank is fully welded with stainless steel argon arc welding to prevent the machine itself from generating dust; the interior is clean and dust-free;

Double over-temperature protection, safer and more reliable;

The internal hot air circulation, the baked objects are evenly heated;

Fast heating time, stable and accurate temperature;

Domestic first-class heat insulation, heat insulation and insulation technology, excellent sealing effect;

The temperature of the body shell is low, which has little effect on the indoor environment temperature;

A variety of heating and transport wind according to product settings; energy saving, safe and environmentally friendly.

It can be protected by a nitrogen-filled atmosphere to achieve an oxidation-free baking environment.

Control systems, trays and carts can be selected according to customer needs.

Color selection legend


Customers can specify color according to the color card.

※According to different baking trays/trailers, the materials are painted, electroplated zinc, stainless steel, etc. The size and specifications can be customized. Welcome to inquire.

Temperature control optional equipment

Thermostat (single segment / 8 segments - 256 segments programmable)
Taiwan Yudian temperature control tableJapan Omron intelligent temperature control table
Japan imported 256-segment programmable Omron temperature controllerJapan OMRON Thermostat
Logger
Imported multi-channel color screen paperless recorderImported multi-channel paper recorder
Import PARTLOW chart temperature recorderImported YOKOGAWA 48 channel temperature recorder
记录组
Portable Temperature Recorder Set 6 pointsIR computer temperature recorder set 6 to 12
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power output, according to SSR, SCR, SSPR and other power automatic regulator.

触摸屏+PLC
Weilun 7 inchProface
MitsubishiSiemens
Industrial computer Ethernet remote monitoring
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power Output An automatic power regulator such as SSR, SCR, SSPR can be installed.

Wind path cycle legend

Single side air supply typeDouble-sided air supply typeDouble-sided air supply explosion-proofHeat radiation rising type
Four-sided radiation typeThermal radiation typeHot air radiation typeHot air radiation type

Tray, cart matching project

Tray form




Punching plateScreen trayGrid disk
Activity cart




grillOven cart + trayChild cart
