产品中心PRODUCT

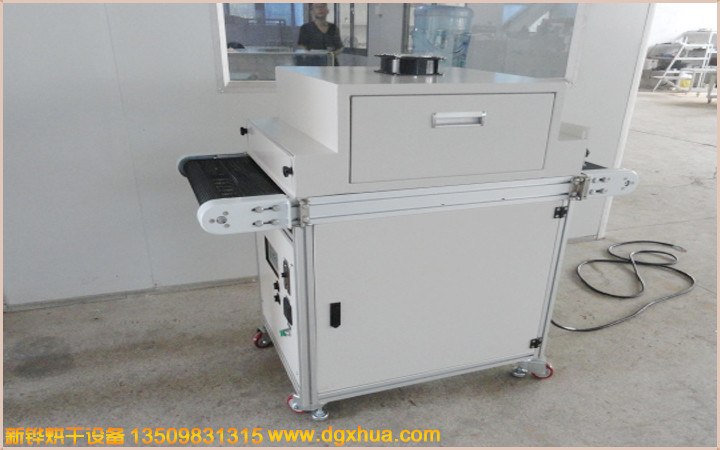

LED UV curing machine
Product number:
LED UV curing machine
Scope of application:
Communication equipment, optical prisms, crystal bonding, optical lens, fiber optic, micro motor, PCB dispensing curing, PCB, semiconductor exposure, screen printing ink curing

LED UV curing machine

Model XHUV-LED402 XHUV-LED502

Outer size L*W*H(mm) 1200*580*1200

LED wavelength (nm) 365~405

Lamp Strength (W/m2) 12 12

Effective illumination width 400*25(mm) 500*25(mm)

Conveying speed 1~12(m/min)

Conveyor belt Teflon belt

Conveying width 500

Box material Outer box: SS41# steel plate after anti-rust treatment, high-temperature powder baking powder

Cooling method

Protection device leakage switch, water temperature over temperature protection, control line fuse

Electricity (KVA) 220v/1.6KW 220v/1.8KW


Specification typeSelected itemsProduct VideoDesign according to customer requirements

  LED UV curing machine is customized according to customer requirements


Product introduction
Unique performanceCustomer optional configuration

The inner tank is fully welded with stainless steel argon arc welding to prevent the machine itself from generating dust; the interior is clean and dust-free;

Double over-temperature protection, safer and more reliable;

The internal hot air circulation, the baked objects are evenly heated;

Fast heating time, stable and accurate temperature;

Domestic first-class heat insulation, heat insulation and insulation technology, excellent sealing effect;

The temperature of the body shell is low, which has little effect on the indoor environment temperature;

A variety of heating and transport wind according to product settings; energy saving, safe and environmentally friendly.

It can be protected by a nitrogen-filled atmosphere to achieve an oxidation-free baking environment.

Control systems, trays and carts can be selected according to customer needs.

Color selection legend


Customers can specify color according to the color card.

※According to different baking trays/trailers, the materials are painted, electroplated zinc, stainless steel, etc. The size and specifications can be customized. Welcome to inquire.

Temperature control optional equipment

Thermostat (single segment / 8 segments - 256 segments programmable)
Taiwan Yudian temperature control tableJapan Omron intelligent temperature control table
Japan imported 256-segment programmable Omron temperature controllerJapan OMRON Thermostat
Logger
Imported multi-channel color screen paperless recorderImported multi-channel paper recorder
Import PARTLOW chart temperature recorderImported YOKOGAWA 48 channel temperature recorder
记录组
Portable Temperature Recorder Set 6 pointsIR computer temperature recorder set 6 to 12
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power output, according to SSR, SCR, SSPR and other power automatic regulator.

触摸屏+PLC
Weilun 7 inchProface
MitsubishiSiemens
Industrial computer Ethernet remote monitoring
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power Output An automatic power regulator such as SSR, SCR, SSPR can be installed.

Wind path cycle legend

Single side air supply typeDouble-sided air supply typeDouble-sided air supply explosion-proofHeat radiation rising type
Four-sided radiation typeThermal radiation typeHot air radiation typeHot air radiation type

Tray, cart matching project

Tray form




Punching plateScreen trayGrid disk
Activity cart




grillOven cart + trayChild cart
