产品中心PRODUCT

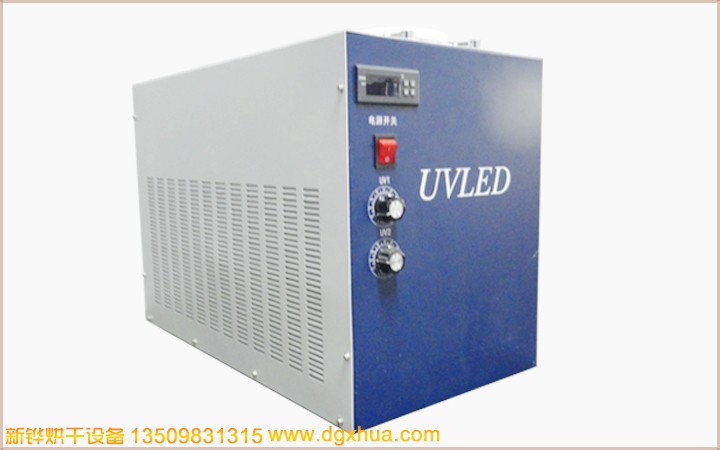

Water cooled LED UV curing machine
Product number:
Water cooled LED UV curing machine
Scope of application:

Water cooled LED UV curing machine

LED light source printing line

Model Light source characteristics Application field Illumination window (mm) Wavelength (nm) Cooling method Luminous intensity (W/CM2) Power (W)

XH33015 Surface Light Label Printing Machine 330*15 385/395 Water Cooling 20 1600

XH26015 Surface Light Label Printing Machine 260*15 385/395 Water Cooling 20 1200

XH66020 Surface Light Source Gravure Printing Machine 660*20 385/395 Water Cooling 20 3100

XH105020 Surface Light Source Gravure Printing Machine 1050*20 385/395 Water Cooling 20 4900

XH75015 surface light source offset printing machine 750*15 385/395 water cooling 20 4200

XH75020 Surface Light Offset Press 750*20 385/395 Water Cool 15 4200

XH105015 Surface light source Offset printing machine 1050*15 385/395 Water cooling 20 5700

XH105020 Surface Light Offset Press 1050*20 385/395 Water Cool 15 5700

XH27020 Surface Light Source Flexo Printing Machine 270*20 385/395 Water Cooling 20 1600

XH35020 Surface Light Source Flexo Printing Machine 350*20 385/395 Water Cooling 20 1800

XH40020 Surface Light Source Flexo Printing Machine 400*20 385/395 Water Cooling 20 1300

XH60020 Surface Light Source Screen Printing Machine 600*20 385/395 Water Cooled 17 700

XH120020 Surface Light Source Screen Printing Machine 1200*20 385/395 Water Cooled 17 1400


Specification typeSelected itemsProduct VideoDesign according to customer requirements

  Water cooled LED UV curing machine



Product introduction
Unique performanceCustomer optional configuration

The inner tank is fully welded with stainless steel argon arc welding to prevent the machine itself from generating dust; the interior is clean and dust-free;

Double over-temperature protection, safer and more reliable;

The internal hot air circulation, the baked objects are evenly heated;

Fast heating time, stable and accurate temperature;

Domestic first-class heat insulation, heat insulation and insulation technology, excellent sealing effect;

The temperature of the body shell is low, which has little effect on the indoor environment temperature;

A variety of heating and transport wind according to product settings; energy saving, safe and environmentally friendly.

It can be protected by a nitrogen-filled atmosphere to achieve an oxidation-free baking environment.

Control systems, trays and carts can be selected according to customer needs.

Color selection legend


Customers can specify color according to the color card.

※According to different baking trays/trailers, the materials are painted, electroplated zinc, stainless steel, etc. The size and specifications can be customized. Welcome to inquire.

Temperature control optional equipment

Thermostat (single segment / 8 segments - 256 segments programmable)
Taiwan Yudian temperature control tableJapan Omron intelligent temperature control table
Japan imported 256-segment programmable Omron temperature controllerJapan OMRON Thermostat
Logger
Imported multi-channel color screen paperless recorderImported multi-channel paper recorder
Import PARTLOW chart temperature recorderImported YOKOGAWA 48 channel temperature recorder
记录组
Portable Temperature Recorder Set 6 pointsIR computer temperature recorder set 6 to 12
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power output, according to SSR, SCR, SSPR and other power automatic regulator.

触摸屏+PLC
Weilun 7 inchProface
MitsubishiSiemens
Industrial computer Ethernet remote monitoring
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power Output An automatic power regulator such as SSR, SCR, SSPR can be installed.

Wind path cycle legend

Single side air supply typeDouble-sided air supply typeDouble-sided air supply explosion-proofHeat radiation rising type
Four-sided radiation typeThermal radiation typeHot air radiation typeHot air radiation type

Tray, cart matching project

Tray form




Punching plateScreen trayGrid disk
Activity cart




grillOven cart + trayChild cart
