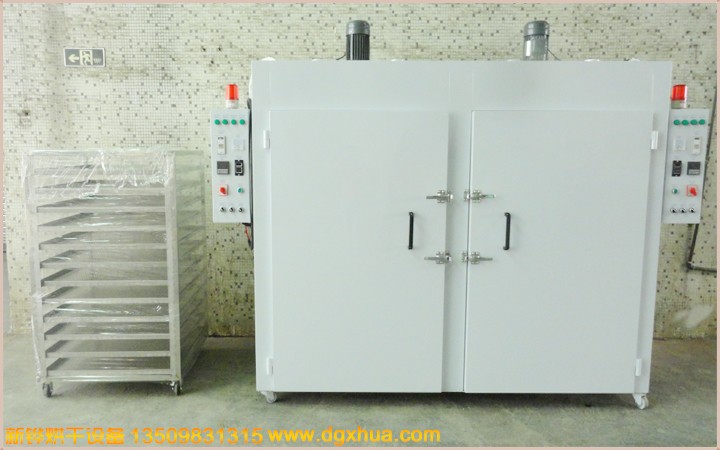

3D molding oven
Product number:
3D molding oven
Scope of application:
Electronics (semiconductors, LCM, LCD, LED, MLCC, TFT, precision ceramics, quartz oscillators), PCB, FPC, electronics, inductors, capacitors, motors, communications, electroplating, plastics, hardware chemicals, food, printing, pharmaceuticals, Precision baking, drying, tempering, preheating, shaping, etc. of PC board, powder, impregnation, spraying, glass, ceramics, wood building materials, etc.

3D molding oven

Model XHMO-5 XHMO-6 XHMO-7

Inner dimension W*D*H(mm) 1000*600*1000 1200*600*1000 1400*600*1200

Outer size W*D*H(mm) 1400*840*1750 1750*840*1750 1950*840*1900

Temperature range RT-250°C

Uniformity ±2% (no load test)

Heating time 30min 30min 35min

Shelf 10 10 12

Box material Inner box: SUS430# (SUS304#) mirror stainless steel; outer box: SS41# steel plate after anti-rust treatment, high-temperature powder baking powder

Air supply mode horizontal/vertical air supply

Protection device Leakage switch, phase sequence protection, over temperature protection, motor over current protection, control line fuse

Electricity AC380V 9KVA AC380V 10KVA AC380V 12KVA

Product Features 1. Adopt intelligent temperature controller, PID automatic calculation, LED display, with SSR solid state relay output control heating, high temperature control accuracy.

 2. Adopt automatic constant temperature, automatic timing, automatic shutdown after the arrival of baking time and alarm

3. The stainless steel electric heating tube saves electricity and is dust-free, so that the product can achieve the effect of rapid drying.

 4. Design the oven air duct for product requirements to ensure the best temperature uniformity.

Other options Programmable multi-stage temperature controller, temperature recorder


Specification typeSelected itemsProduct VideoDesign according to customer requirements

  3D molding oven


Product introduction
Unique performanceCustomer optional configuration

The inner tank is fully welded with stainless steel argon arc welding to prevent the machine itself from generating dust; the interior is clean and dust-free;

Double over-temperature protection, safer and more reliable;

The internal hot air circulation, the baked objects are evenly heated;

Fast heating time, stable and accurate temperature;

Domestic first-class heat insulation, heat insulation and insulation technology, excellent sealing effect;

The temperature of the body shell is low, which has little effect on the indoor environment temperature;

A variety of heating and transport wind according to product settings; energy saving, safe and environmentally friendly.

It can be protected by a nitrogen-filled atmosphere to achieve an oxidation-free baking environment.

Control systems, trays and carts can be selected according to customer needs.

Color selection legend


Customers can specify color according to the color card.

※According to different baking trays/trailers, the materials are painted, electroplated zinc, stainless steel, etc. The size and specifications can be customized. Welcome to inquire.

Temperature control optional equipment

Thermostat (single segment / 8 segments - 256 segments programmable)
Taiwan Yudian temperature control tableJapan Omron intelligent temperature control table
Japan imported 256-segment programmable Omron temperature controllerJapan OMRON Thermostat
Logger
Imported multi-channel color screen paperless recorderImported multi-channel paper recorder
Import PARTLOW chart temperature recorderImported YOKOGAWA 48 channel temperature recorder
记录组
Portable Temperature Recorder Set 6 pointsIR computer temperature recorder set 6 to 12
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power output, according to SSR, SCR, SSPR and other power automatic regulator.

触摸屏+PLC
Weilun 7 inchProface
MitsubishiSiemens
Industrial computer Ethernet remote monitoring
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power Output An automatic power regulator such as SSR, SCR, SSPR can be installed.

Wind path cycle legend

Single side air supply typeDouble-sided air supply typeDouble-sided air supply explosion-proofHeat radiation rising type
Four-sided radiation typeThermal radiation typeHot air radiation typeHot air radiation type

Tray, cart matching project

Tray form




Punching plateScreen trayGrid disk
Activity cart




grillOven cart + trayChild cart
