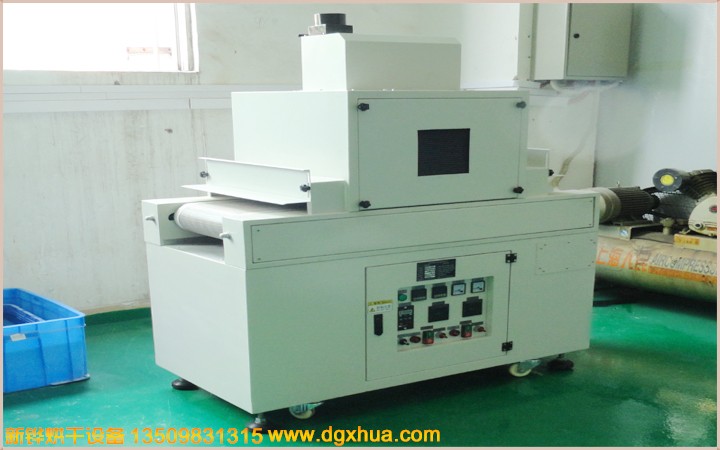

Small UV curing machine
Product number:
Small UV curing machine
Scope of application:
Hardware, electronics, capacitors, glass, plastic, UV coating, ink screen printing, glue curing

Small UV curing machine

Model XHUV-202 XHUV-302

Outer size L*W*H(mm) 1200*510*1200 2000*800*1260

Lamp power (KW) 2*2KW 2*3KW

Lamp strength (W/m2) 60/80 60/80

Effective illumination width 150/250mm 400mm

Feeding port height (mm) 0-150 conveying height: 850±50mm

Conveying speed 3~12m/min

Conveyor belt Teflon mesh belt, stainless steel mesh belt,

Conveying width 180mm 470mm

Box material SS41# steel plate after anti-rust treatment, high-temperature powder baking powder

Cooling method forced air cooling

Protection device leakage switch, phase sequence protection, motor over current protection, control line fuse

Electricity AC380V 5KVA AC380V 7KVA

Other options Cold mirror-CM, cold plate-CF, stepless variable frequency power supply


Specification typeSelected itemsProduct VideoDesign according to customer requirements

  Small UV curing machine specifications can be customized


Product introduction
Unique performanceCustomer optional configuration

The inner tank is fully welded with stainless steel argon arc welding to prevent the machine itself from generating dust; the interior is clean and dust-free;

Double over-temperature protection, safer and more reliable;

The internal hot air circulation, the baked objects are evenly heated;

Fast heating time, stable and accurate temperature;

Domestic first-class heat insulation, heat insulation and insulation technology, excellent sealing effect;

The temperature of the body shell is low, which has little effect on the indoor environment temperature;

A variety of heating and transport wind according to product settings; energy saving, safe and environmentally friendly.

It can be protected by a nitrogen-filled atmosphere to achieve an oxidation-free baking environment.

Control systems, trays and carts can be selected according to customer needs.

Color selection legend


Customers can specify color according to the color card.

※According to different baking trays/trailers, the materials are painted, electroplated zinc, stainless steel, etc. The size and specifications can be customized. Welcome to inquire.

Temperature control optional equipment

Thermostat (single segment / 8 segments - 256 segments programmable)
Taiwan Yudian temperature control tableJapan Omron intelligent temperature control table
Japan imported 256-segment programmable Omron temperature controllerJapan OMRON Thermostat
Logger
Imported multi-channel color screen paperless recorderImported multi-channel paper recorder
Import PARTLOW chart temperature recorderImported YOKOGAWA 48 channel temperature recorder
记录组
Portable Temperature Recorder Set 6 pointsIR computer temperature recorder set 6 to 12
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power output, according to SSR, SCR, SSPR and other power automatic regulator.

触摸屏+PLC
Weilun 7 inchProface
MitsubishiSiemens
Industrial computer Ethernet remote monitoring
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power Output An automatic power regulator such as SSR, SCR, SSPR can be installed.

Wind path cycle legend

Single side air supply typeDouble-sided air supply typeDouble-sided air supply explosion-proofHeat radiation rising type
Four-sided radiation typeThermal radiation typeHot air radiation typeHot air radiation type

Tray, cart matching project

Tray form




Punching plateScreen trayGrid disk
Activity cart




grillOven cart + trayChild cart
