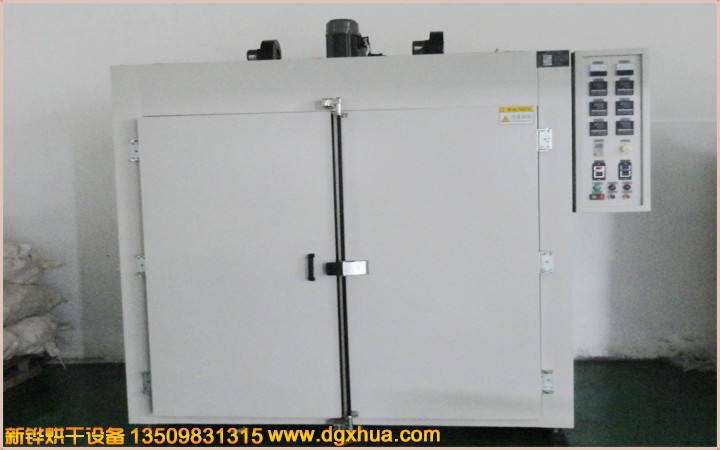

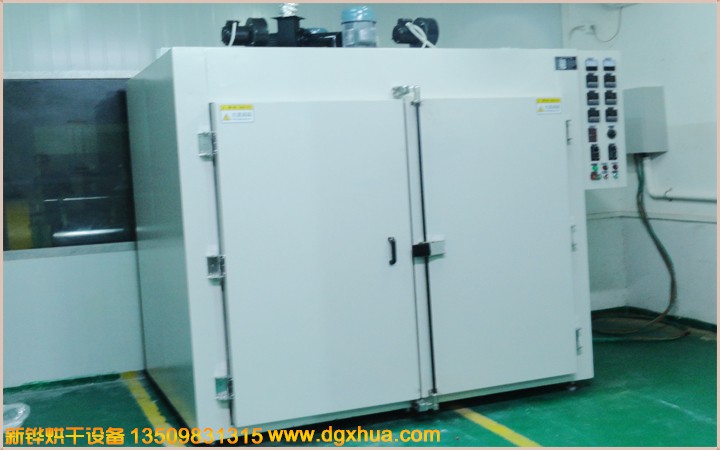

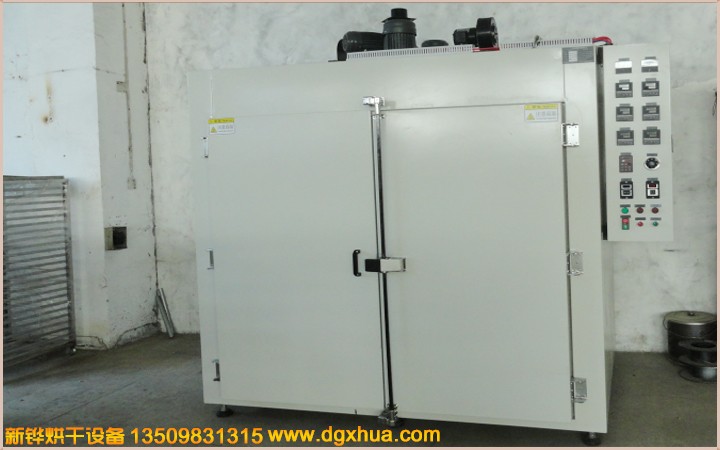

Double door silicone oven
Product number:
Double door silicone oven
Scope of application:
Silicone tableware, buttons, sealing ring, oxygen mask, teat, protective sleeve and other silicone rubber products secondary vulcanization process After secondary vulcanization, silicone products can pass EU, LFGB, FDA testing standards

Double door silicone oven specifications

Model XHMO-18-6R XHMO-36-6R

Inner dimension W*D*H(mm) 830*1200*1500 1650*1200*1500

Outer size W*D*H(mm) 1490*1460*2180 2280*1460*2300

Temperature range RT-250°C

Uniformity ±1.5% (no load test)

Heating time 30min 35min

Intake mode MAX: 25L/min

Exhaust air mode

Box material

Inner box: SUS304# mirror stainless steel;

Outer box: SS41# steel plate after anti-rust treatment, high-temperature powder baking powder

Air supply mode

Heater SUS304# dust-free electric heater

Protection devices All electrical accessories such as leakage switch, phase sequence protection, over temperature protection, motor over current protection, control line fuse, etc. are all in accordance with national standards.

Electricity (KVA) 18 36

Product Features

 1. Temperature control mode: adopt intelligent temperature controller, PID automatic calculation, LED display, with SSR solid state relay output control heating, high temperature control accuracy, 6 points display monitoring temperature.

2. Temperature uniformity: The temperature has been monitored by 18 meters in the furnace through the temperature recorder. The temperature difference between each point is within the set temperature of 200±3°C.

3. Exhaust air mode: variable frequency powerful air exhaust device with air inlet mode, maximum exhaust air speed: 8-12 m / S adjustable, effectively solve the dust generated by the silicone product during the baking process.

4. Cleaning method: the inside of the furnace + the top inner plate adopts the drawer type guide groove structure and is easy to clean without screws.

5. Sealing performance: The inner liner is fully sealed and fully welded. The special sealing strip is not fixed by pulling nails, and the replacement is convenient.

Other options PLC + touch screen control, temperature recorder,


Specification typeSelected itemsProduct VideoDesign according to customer requirements

  Double door silicone oven


Product introduction
Unique performanceCustomer optional configuration

The inner tank is fully welded with stainless steel argon arc welding to prevent the machine itself from generating dust; the interior is clean and dust-free;

Double over-temperature protection, safer and more reliable;

The internal hot air circulation, the baked objects are evenly heated;

Fast heating time, stable and accurate temperature;

Domestic first-class heat insulation, heat insulation and insulation technology, excellent sealing effect;

The temperature of the body shell is low, which has little effect on the indoor environment temperature;

A variety of heating and transport wind according to product settings; energy saving, safe and environmentally friendly.

It can be protected by a nitrogen-filled atmosphere to achieve an oxidation-free baking environment.

Control systems, trays and carts can be selected according to customer needs.

Color selection legend


Customers can specify color according to the color card.

※According to different baking trays/trailers, the materials are painted, electroplated zinc, stainless steel, etc. The size and specifications can be customized. Welcome to inquire.

Temperature control optional equipment

Thermostat (single segment / 8 segments - 256 segments programmable)
Taiwan Yudian temperature control tableJapan Omron intelligent temperature control table
Japan imported 256-segment programmable Omron temperature controllerJapan OMRON Thermostat
Logger
Imported multi-channel color screen paperless recorderImported multi-channel paper recorder
Import PARTLOW chart temperature recorderImported YOKOGAWA 48 channel temperature recorder
记录组
Portable Temperature Recorder Set 6 pointsIR computer temperature recorder set 6 to 12
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power output, according to SSR, SCR, SSPR and other power automatic regulator.

触摸屏+PLC
Weilun 7 inchProface
MitsubishiSiemens
Industrial computer Ethernet remote monitoring
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power Output An automatic power regulator such as SSR, SCR, SSPR can be installed.

Wind path cycle legend

Single side air supply typeDouble-sided air supply typeDouble-sided air supply explosion-proofHeat radiation rising type
Four-sided radiation typeThermal radiation typeHot air radiation typeHot air radiation type

Tray, cart matching project

Tray form




Punching plateScreen trayGrid disk
Activity cart




grillOven cart + trayChild cart
