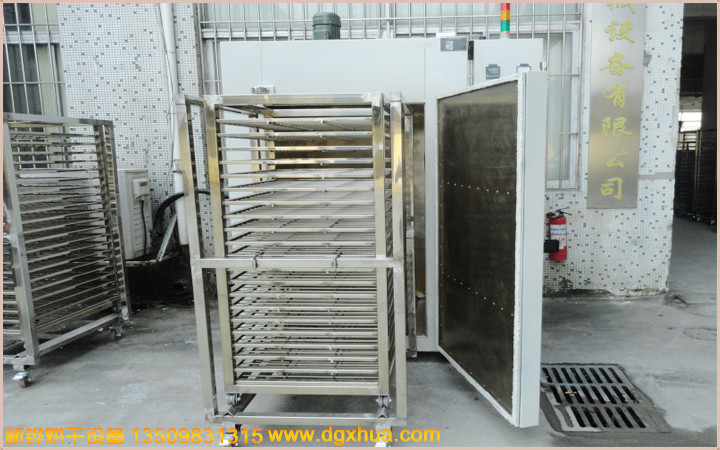

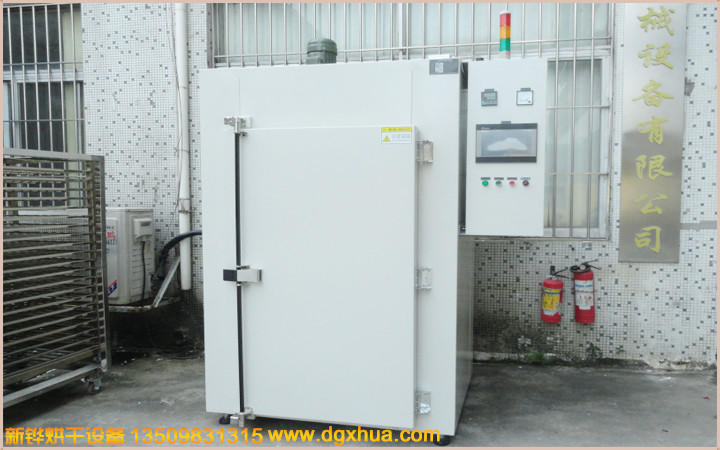

Powder high temperature oven
Outer dimensions: width 1570 × depth 1200 × height 2280mm (subject to the actual product)
Inner box material: It is made of 2.0mm thick SUS304# stainless steel plate, welded by argon arc, fully sealed and fully welded to ensure the furnace is clean and no dust is generated.
Outer box material: It is made of 2.0mm thick SS41# cold rolled steel plate.
The base is welded with 50*50*2.0mm GB angle iron, and the bottom is equipped with load-bearing foot cup. The height of the foot cup is adjustable to facilitate the fixing and docking of the equipment.
The welding of the machine table is firmly welded and smoothed; after the anti-rust treatment, the electrostatic high-temperature powder is coated, and the whole machine is black and white.
The SUS304 seamless heat sink tube is used to install the external wiring on both sides of the oven top.
The Taiwan (Taiwan) SCR power regulator is used to control the output, and the output power can be automatically adjusted according to the temperature error, so that the temperature is more accurate, energy saving.
Heating power: 22 KW, constant temperature power about 10KW.
Powder high temperature oven specifications size to inquire custom
| Unique performance | Customer optional configuration |
The inner tank is fully welded with stainless steel argon arc welding to prevent the machine itself from generating dust; the interior is clean and dust-free; Double over-temperature protection, safer and more reliable; The internal hot air circulation, the baked objects are evenly heated; Fast heating time, stable and accurate temperature; Domestic first-class heat insulation, heat insulation and insulation technology, excellent sealing effect; The temperature of the body shell is low, which has little effect on the indoor environment temperature; A variety of heating and transport wind according to product settings; energy saving, safe and environmentally friendly. | It can be protected by a nitrogen-filled atmosphere to achieve an oxidation-free baking environment. Control systems, trays and carts can be selected according to customer needs. Color selection legend
Customers can specify color according to the color card. |
| ※According to different baking trays/trailers, the materials are painted, electroplated zinc, stainless steel, etc. The size and specifications can be customized. Welcome to inquire. | |
Temperature control optional equipment
| Thermostat (single segment / 8 segments - 256 segments programmable) | |||
| Taiwan Yudian temperature control table |  | Japan Omron intelligent temperature control table |  |
| Japan imported 256-segment programmable Omron temperature controller |  | Japan OMRON Thermostat |  |
| Logger | |||
| Imported multi-channel color screen paperless recorder |  | Imported multi-channel paper recorder |  |
| Import PARTLOW chart temperature recorder |  | Imported YOKOGAWA 48 channel temperature recorder |  |
| 记录组 | |||
| Portable Temperature Recorder Set 6 points |  | IR computer temperature recorder set 6 to 12 |  |
| Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer. | |||
| Power output, according to SSR, SCR, SSPR and other power automatic regulator. | |||
| 触摸屏+PLC | |||
| Weilun 7 inch |  | Proface |  |
| Mitsubishi |  | Siemens |  |
| Industrial computer Ethernet remote monitoring | |||
 | |||
| Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer. | |||
| Power Output An automatic power regulator such as SSR, SCR, SSPR can be installed. | |||
Wind path cycle legend
 |  |  |  |
| Single side air supply type | Double-sided air supply type | Double-sided air supply explosion-proof | Heat radiation rising type |
 |  |  |  |
| Four-sided radiation type | Thermal radiation type | Hot air radiation type | Hot air radiation type |
Tray, cart matching project
| Tray form |
|
|
|
| Punching plate | Screen tray | Grid disk | |
| Activity cart |
|
|
|
| grill | Oven cart + tray | Child cart |
