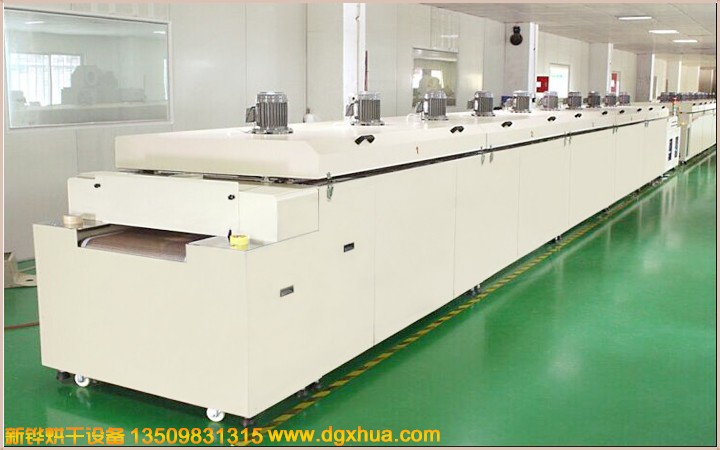

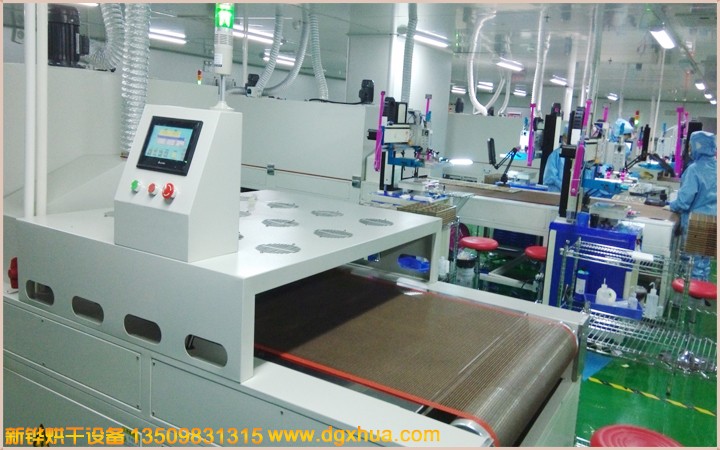

Clean tunnel furnace parameters
Power supply AC380V 3φ 50HZ 28KW
Machine size W1420mm×L3600mm×H1680mm for reference
The feeding section is 300mm long; the heating section is 2200mm long (divided into three sections of independent heating and temperature control, the first section is 500mm, the second section is 1200mm, the third section is 500mm); the drafting hood is 200mm long; the cooling section is 400mm (the cooling fan of the device is attached) Dust net); the discharge section is 500mm long;
The conveying net has a width of 1000mm, the height of the inlet and outlet ports is adjustable by 80mm, and the adjustment plate is installed. The conveying product is adjustable from the ground height of 760~900mm.
Temperature Control System
Temperature range: normal temperature +25~220°C adjustable, normal temperature-200°C about 20 minutes, constant temperature 30 minutes temperature deviation ±3°C (except feed inlet and outlet), effective heating temperature zone length ≥ heating section length 80%;
Controller: Taiwan Xuan Rong temperature automatic controller, digital setting, with SSR solid state relay for control, PID automatic calculation, LED display, temperature controller temperature control accuracy ± 1% ° CFS
Machine structure
Inner and outer furnace body material: SUS430# mirror stainless steel plate for inner box, SS41# for outer box
Cold-rolled steel plate is made of powdered baking powder after anti-rust treatment, with Zou gray gray
The frame is made of 40*40* square pass welding
120K high-density insulation cotton, insulation thickness 150mm, air layer insulation, casing temperature<40°C, (except for inlet, outlet and seal slits)
High temperature silicone sealing strip, sealed, energy saving and environmental protection.
The split struts are designed with manual support rods for easy maintenance and cleaning.
The equipment runs reliably and stably, can be continuously produced, and has beautiful appearance and humanized design.
Heating system
It is heated by stainless steel electric heating, hot air circulation mode, heating power is about 24KW, heating temperature is uniform and stable.

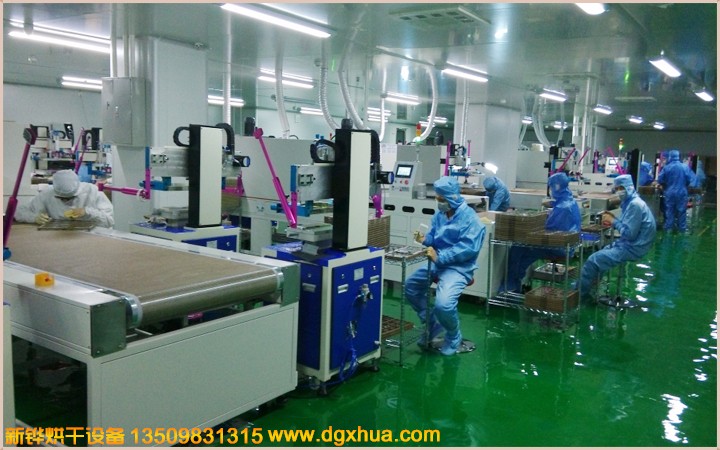

Conveyor system
It is transported by Teflon mesh belt, the mesh is 4mm*4mm, and the interface butt joints are connected by edging steel wire, which is strong and wear resistant.
Promise electronic speed regulation, the adjustable speed can be adjusted to 0.1-2/min, and the mesh belt is equipped with guide bars. The bottom plate of the oven is equipped with anti-bias guide groove limit, and the conveying is stable without shaking.
Equipped
Conveying direction facing the control panel, from left to right
The control box is located on the side of the feeding section of the machine
The exhaust port has a diameter of 100mm with a leaf-shaped adjustment seat and is equipped with a filter.
Install 100-class high-efficiency air filter, dust-free class Class100 (floor 100)
The dust-free tunnel furnace can be customized according to customer's process parameters.
| Unique performance | Customer optional configuration |
The inner tank is fully welded with stainless steel argon arc welding to prevent the machine itself from generating dust; the interior is clean and dust-free; Double over-temperature protection, safer and more reliable; The internal hot air circulation, the baked objects are evenly heated; Fast heating time, stable and accurate temperature; Domestic first-class heat insulation, heat insulation and insulation technology, excellent sealing effect; The temperature of the body shell is low, which has little effect on the indoor environment temperature; A variety of heating and transport wind according to product settings; energy saving, safe and environmentally friendly. | It can be protected by a nitrogen-filled atmosphere to achieve an oxidation-free baking environment. Control systems, trays and carts can be selected according to customer needs. Color selection legend
Customers can specify color according to the color card. |
| ※According to different baking trays/trailers, the materials are painted, electroplated zinc, stainless steel, etc. The size and specifications can be customized. Welcome to inquire. | |
Temperature control optional equipment
| Thermostat (single segment / 8 segments - 256 segments programmable) | |||
| Taiwan Yudian temperature control table |  | Japan Omron intelligent temperature control table |  |
| Japan imported 256-segment programmable Omron temperature controller |  | Japan OMRON Thermostat |  |
| Logger | |||
| Imported multi-channel color screen paperless recorder |  | Imported multi-channel paper recorder |  |
| Import PARTLOW chart temperature recorder |  | Imported YOKOGAWA 48 channel temperature recorder |  |
| 记录组 | |||
| Portable Temperature Recorder Set 6 points |  | IR computer temperature recorder set 6 to 12 |  |
| Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer. | |||
| Power output, according to SSR, SCR, SSPR and other power automatic regulator. | |||
| 触摸屏+PLC | |||
| Weilun 7 inch |  | Proface |  |
| Mitsubishi |  | Siemens |  |
| Industrial computer Ethernet remote monitoring | |||
 | |||
| Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer. | |||
| Power Output An automatic power regulator such as SSR, SCR, SSPR can be installed. | |||
Wind path cycle legend
 |  |  |  |
| Single side air supply type | Double-sided air supply type | Double-sided air supply explosion-proof | Heat radiation rising type |
 |  |  |  |
| Four-sided radiation type | Thermal radiation type | Hot air radiation type | Hot air radiation type |
Tray, cart matching project
| Tray form |
|
|
|
| Punching plate | Screen tray | Grid disk | |
| Activity cart |
|
|
|
| grill | Oven cart + tray | Child cart |
