Silicone nanometer
Product number:
Silicone nanometer
Scope of application:

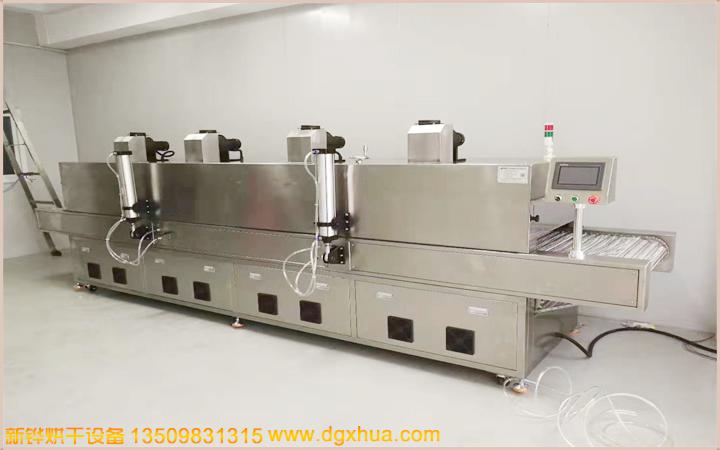

Silicone nano surface modification equipment


Uses and characteristics:

1. This machine is a practical upgrading device. It refers to a silicone modification device that can realize the cleaning and drying of silica gel at one time and avoid the use of hand paint.

2. UV protective layer is formed by UV ultraviolet light irradiation. Since the strap is solvent-free and coated, the finished product has stable process size and performance and is very durable.

3. Due to the UV modification, the surface of the silicone body becomes a UV protective layer, which has the effect of being dust-proof and soft and smooth to the silicone. When the non-heavy external force is destroyed, the UV protective layer will not fall off.



Product parameters

Product Name: Silicone UV Modifier

Irradiation intensity: 4200mj/cm2

Machine power: 20KW

Cooling method: air cooling

Machine size: length 5000* width 1000* height 1350mm

Conveying speed: adjustable from 1~10m/min

UV wavelength: 185-254NM

Conveying width: 600mm

UV lamp: 160W*725mm*112

Feeding height: adjustable from 20-100mm


Specification typeSelected itemsProduct VideoDesign according to customer requirements

  Silicone nano surface modification equipment customization



Product introduction
Unique performanceCustomer optional configuration

The inner tank is fully welded with stainless steel argon arc welding to prevent the machine itself from generating dust; the interior is clean and dust-free;

Double over-temperature protection, safer and more reliable;

The internal hot air circulation, the baked objects are evenly heated;

Fast heating time, stable and accurate temperature;

Domestic first-class heat insulation, heat insulation and insulation technology, excellent sealing effect;

The temperature of the body shell is low, which has little effect on the indoor environment temperature;

A variety of heating and transport wind according to product settings; energy saving, safe and environmentally friendly.

It can be protected by a nitrogen-filled atmosphere to achieve an oxidation-free baking environment.

Control systems, trays and carts can be selected according to customer needs.

Color selection legend


Customers can specify color according to the color card.

※According to different baking trays/trailers, the materials are painted, electroplated zinc, stainless steel, etc. The size and specifications can be customized. Welcome to inquire.

Temperature control optional equipment

Thermostat (single segment / 8 segments - 256 segments programmable)
Taiwan Yudian temperature control tableJapan Omron intelligent temperature control table
Japan imported 256-segment programmable Omron temperature controllerJapan OMRON Thermostat
Logger
Imported multi-channel color screen paperless recorderImported multi-channel paper recorder
Import PARTLOW chart temperature recorderImported YOKOGAWA 48 channel temperature recorder
记录组
Portable Temperature Recorder Set 6 pointsIR computer temperature recorder set 6 to 12
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power output, according to SSR, SCR, SSPR and other power automatic regulator.

触摸屏+PLC
Weilun 7 inchProface
MitsubishiSiemens
Industrial computer Ethernet remote monitoring
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power Output An automatic power regulator such as SSR, SCR, SSPR can be installed.

Wind path cycle legend

Single side air supply typeDouble-sided air supply typeDouble-sided air supply explosion-proofHeat radiation rising type
Four-sided radiation typeThermal radiation typeHot air radiation typeHot air radiation type

Tray, cart matching project

Tray form




Punching plateScreen trayGrid disk
Activity cart




grillOven cart + trayChild cart
