产品中心PRODUCT

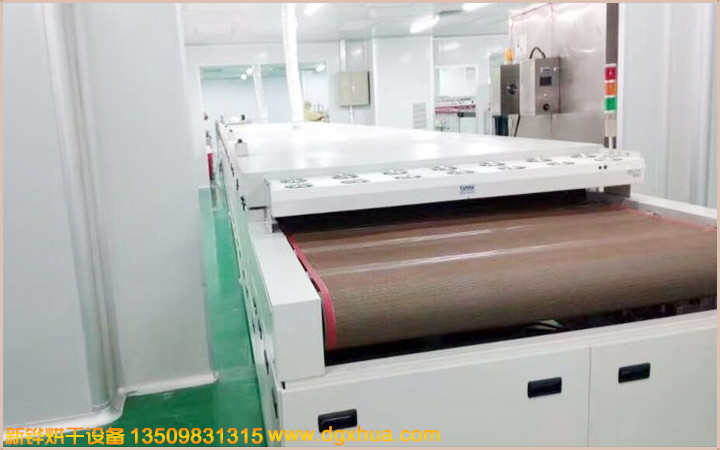

Silk screen tunnel drying oven
Product number:
Silk screen tunnel drying oven
Scope of application:
Silver paddle, main curing, OC pre-baking, glass cover, Film, membrane switch, light guide plate, etc. silk screen pre-bake electronic product silk screen drying

Silk screen tunnel drying furnace specification reference

Model XHSOL-100-2IR XHSOL-100-4IR XHSOL-120-4IR

Inner dimension L*W*H(mm) 2400*1000*50 8000*1050*50 10000*1250*50

Outer size L*W*H(mm) 3600*1050*1650 10000*1050*1650 12500*1450*1650

Feed port height (mm) 0-50 conveying height (mm) 850±50

Feed section length (mm) 500 800 1000

Heating section length (mm) 2*1200 4*2000 4*2500

Cooling section length (mm) 200 400 500

Discharge section length (mm) 500 800 1000

Conveying width (mm) 1000 1000 1200

Conveying method Teflon mesh belt, Teflon belt

Temperature range RT-200°C (250°C) Uniformity ±2.5% (no-load test)

Heating time 30min 35min 40min

Box material

Inner box: SUS304#T1.5mm mirror stainless steel

Outer box: SS41#T1.5mm steel plate after anti-rust treatment, high-temperature baking powder

Air supply mode Single side horizontal air supply / vertical air supply

Heating method SUS304# electric heater + hot air circulation, IR + hot air circulation

Cleanliness Class100~1000#

Protection device Leakage switch, phase sequence protection, over temperature protection, motor overload protection, control line fuse

Electricity AC380V 18KVA AC380V 48KVA AC380V 63KVA

Product Features

1. Adopt intelligent temperature controller, PID automatic calculation, LED display, with SSR solid state relay output control heating, high temperature control accuracy.

2. Use two-stage four-way uniform for distributed control heating (when the temperature is constant, one of the electric heating pipes can be turned off arbitrarily, and the heating power is reduced to enter the power-saving mode)

3. The far-infrared electric heating tube is used for power saving, dust-free, and radiation heating from the inside to the outside, so that the product achieves the effect of rapid drying.

4. It adopts high temperature and high efficiency filter and is equipped with differential pressure gauge to show the working condition of filtration.

Application Fields Silver paddle, main curing, OC pre-baking, glass cover, Film, membrane switch, light guide plate, etc.


Specification typeSelected itemsProduct VideoDesign according to customer requirements

  Silk screen tunnel drying furnace specifications can be customized according to customer requirements


Product introduction
Unique performanceCustomer optional configuration

The inner tank is fully welded with stainless steel argon arc welding to prevent the machine itself from generating dust; the interior is clean and dust-free;

Double over-temperature protection, safer and more reliable;

The internal hot air circulation, the baked objects are evenly heated;

Fast heating time, stable and accurate temperature;

Domestic first-class heat insulation, heat insulation and insulation technology, excellent sealing effect;

The temperature of the body shell is low, which has little effect on the indoor environment temperature;

A variety of heating and transport wind according to product settings; energy saving, safe and environmentally friendly.

It can be protected by a nitrogen-filled atmosphere to achieve an oxidation-free baking environment.

Control systems, trays and carts can be selected according to customer needs.

Color selection legend


Customers can specify color according to the color card.

※According to different baking trays/trailers, the materials are painted, electroplated zinc, stainless steel, etc. The size and specifications can be customized. Welcome to inquire.

Temperature control optional equipment

Thermostat (single segment / 8 segments - 256 segments programmable)
Taiwan Yudian temperature control tableJapan Omron intelligent temperature control table
Japan imported 256-segment programmable Omron temperature controllerJapan OMRON Thermostat
Logger
Imported multi-channel color screen paperless recorderImported multi-channel paper recorder
Import PARTLOW chart temperature recorderImported YOKOGAWA 48 channel temperature recorder
记录组
Portable Temperature Recorder Set 6 pointsIR computer temperature recorder set 6 to 12
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power output, according to SSR, SCR, SSPR and other power automatic regulator.

触摸屏+PLC
Weilun 7 inchProface
MitsubishiSiemens
Industrial computer Ethernet remote monitoring
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power Output An automatic power regulator such as SSR, SCR, SSPR can be installed.

Wind path cycle legend

Single side air supply typeDouble-sided air supply typeDouble-sided air supply explosion-proofHeat radiation rising type
Four-sided radiation typeThermal radiation typeHot air radiation typeHot air radiation type

Tray, cart matching project

Tray form




Punching plateScreen trayGrid disk
Activity cart




grillOven cart + trayChild cart
